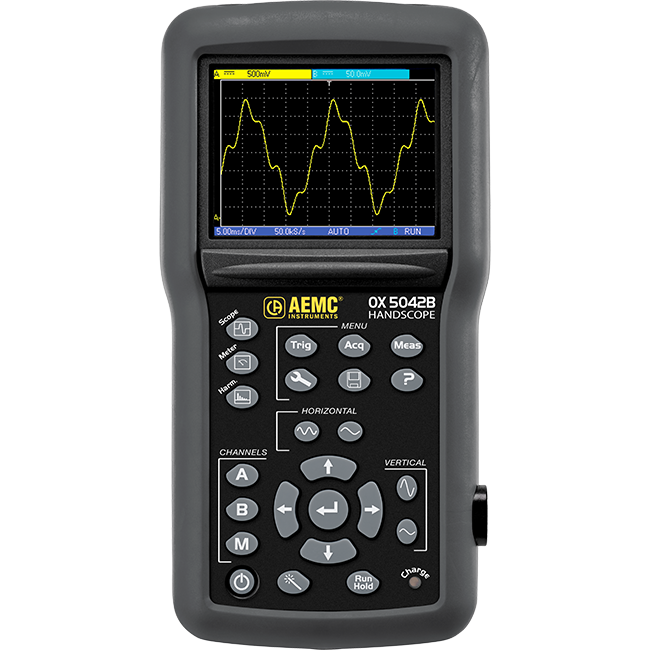

Handscope Portable Oscilloscope Model OX5042B
The compact, shockproof, IP54, 3-in-1 Handscope Model OX 5042B can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a 3.5-inch color screen with LED backlighting for a precise and crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.
The Model OX 5042B combines three measuring instruments in one:
- Oscilloscope, 2 fully isolated channels, 40 MHz bandwidth, vertical sensitivity 5 mV to 200 V/div
- 2 fully isolated channel multimeter, 8000-count display, with power measurements
- 2 fully isolated channel harmonic analyzer, up to the 31st harmonic (fundamental frequency from 40 Hz to 450 Hz)
2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month. Communication via isolated USB SCPI protocol. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce its environmental impact and is supplied with a 3-year warranty.
